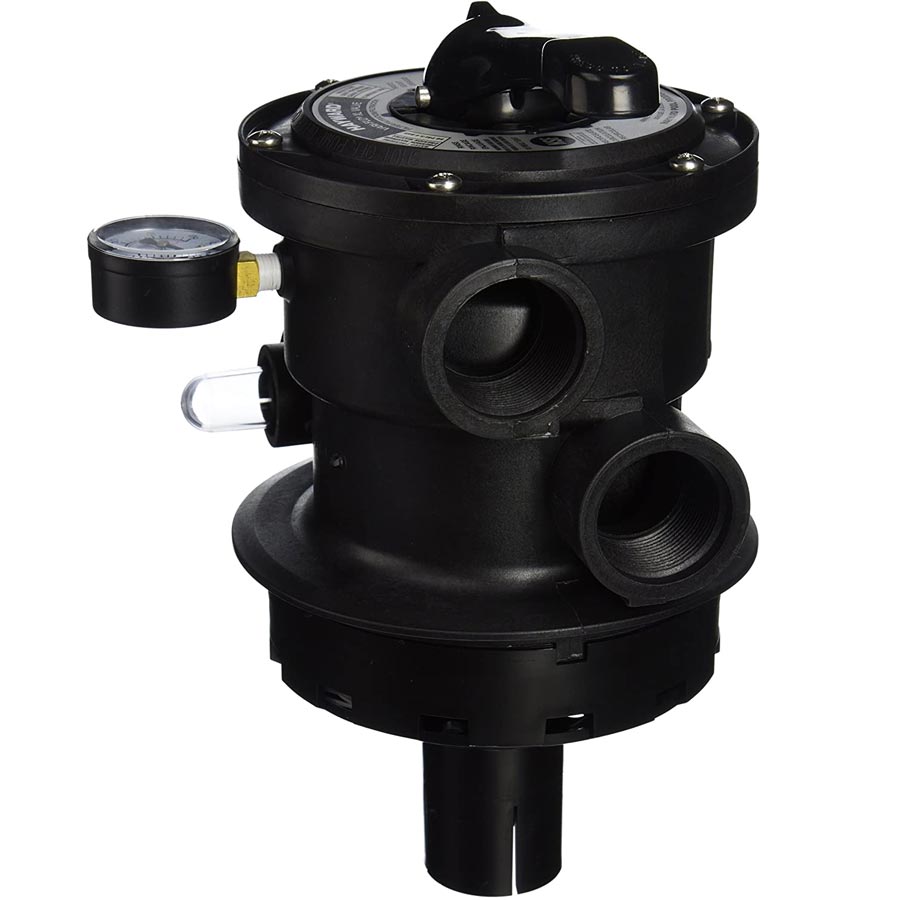

Hayward Multi-Port Valve, 1.5" Top Mount (SP0714T)

Hayward'S Vari-Flo Xl Multiport Valve, Is Engineered For Maximum Flow At Lower Pressure Drops And Is The Leading Choice In Multiport Valves. Featuring 7-In-1 Filter Functions In An Easy To Use Lever Action Handle And A Built In Sight-Glass.

Features:

• Filter - for normal filtering and regular vacuuming

• Backwash - for cleaning filter sand bed of accumulated debris

• Rinse - use after completing backwash cycle to ensure all dirty water is rinsed out of the filter to waste

• Waste - by-passes the filter for draining or lowering the pool water level and for vacuuming heavy debris directly to the waste line

• Recirculate - water is recirculated through the valve, by-passing the filter

• Closed - shuts off the flow from the pump to the filter

• Easy-to-use lever action handle

• Complete with integral sight glass

Product Specifications:

• ABS body and cover

• Neoprene valve seat

• Heavy-Duty stainless steel spring

Includes:

• Hayward Vari-Flo XL multiport control valve

• Pressure gauge

• O-Ring

• Clamp

• 1-1/2" male threaded x 1-1/2" barbed fitting
